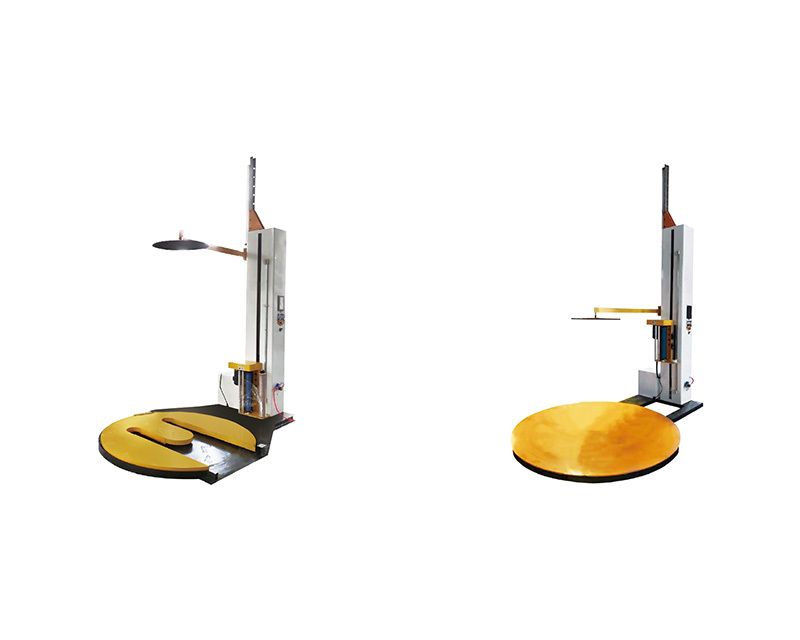

Top type pallet wrapping machine
Key Word:
Products Detial
Technological parameter
|
Equipment type |
LT-TP1650Y |
|
Disk diameter |
1650mm |
|
Wrapping specification |
(500-1200)mm×(500-1200)mm(L×W) |
|
Packing height |
2000mm/2400mm/2800mm |
|
Packaging efficiency |
20-40 torr/hour |
|
Turntable speed |
3-12rpm; adjustable speed and frequency conversion |
|
Turntable diameter |
1650/1800mm/2000mm/2200mm/2400mm/2600mm |
|
Turntable height |
85mm (chassis bracket: square tube specification 100*120*4; reinforced plate thickness 10mm) |
|
Turntable bearing |
2000kg/3000kg |
|
Membrane frame system |
Pre-stretched film frame, pre-stretched up to 250%, automatic film delivery.Frequency conversion speed regulation |
|
Lifting column |
The lifting speed is adjustable by frequency conversion, and the 10A double-chain transmission method is adopted. |
|
Control system |
PLC control, touch screen display, the number of winding layers and the number of times are adjustable, the turntable is automatically reset, and the height of the cargo is automatically sensed. |
|
Column housing |
Wall thickness 1.5mm; upper and lower plates 6mm; inner corner reinforcing plate 6mm; width 400mm |
|
Machine weight |
650kg |
|
Overall dimension |
2550mm×1650mm×2485mm |
|
Use air source |
1000ml/m³ |
|
Power/Noltage |
1.5kw AC220V/50HZ |
|
Optional |
Weighing device/heightening/weighting |
